Monitoring Water Quality

4.1
Stream Habitat Walk

The Stream Habitat Walk is an easy-to-use approach for identifying and assessing the elements of a stream's habitat. It is based on a simple protocol known as Streamwalk, developed by EPA's Regional Office in Seattle, Washington and consists primar ily of visual observation of stream habitat characteristics, wildlife present, and gross physical attributes. A simple in-stream macroinvertebrate evaluation can also be performed. This approach requires little in the way of equipment and training.

The Stream Habitat Walk is most useful as:

Because the Stream Habitat Walk is not scientifically rigorous, data from this approach are less likely to be used by state and local water quality management agencies than are data from other biological monitoring approaches. However, the Stream Habitat Walk's ease of use, adaptability, and low cost make it a highly attractive approach for many programs whose primary focus is public awareness and citizen involvement.

Step 1--Prepare for the Walk

TASK 1 Schedule your Habitat Walk

To provide data that accurately characterize your stream and can be used to document general trends in your area, you should walk the same site at least three times a year, during different seasons. It is usually best to visit your site in early spring, l ate summer, and fall if you live in a part of the country that experiences seasonal variations in leaf cover, vegetation growth, and water flow. It is a good idea to check with a local aquatic biologist for assistance in determining the best times to schedule monitoring. For purposes of accuracy and consistency, it i s best to monitor the same site from year to year and at the same time of the year (e.g., in the spring and, more specifically, in the same month).

TASK 2 Obtain a U.S. Geological Survey (USGS) topographic map of your area

One of the most valuable tools for conducting stream monitoring work is a U.S. Geological Survey (USGS) topographic map. These "topo" maps display many important features of the landscape including elevations, waterways, roads, and buildings. They are cri tical tools for defining the watershed of your study stream. (See Chapter 3 for a discussion of topographic maps.)

TASK 3 Select and mark the Habitat Walk location(s)

Choosing the location for stream monitoring is a task defined by the goals of your individual program. Program managers may select sites themselves or in collaboration with local or state water quality personnel. Other programs allow their volunteers to c hoose the site based on their personal interests. (See Chapter 2 for a discussion on choosing monitoring locations.) If a Watershed Survey is conducted (see Chapter 3), this information should play a role in deciding which areas are the best candidates for the Stream Habitat Walk.

Once a monitoring site is chosen, it should be marked on the topo map. This will document the location and serve as a record in case future volunteers or data users need to find the site.

TASK 4 Become familiar with safety procedures

Volunteers must always keep safety in mind while conducting any stream monitoring activity. Provide all Stream Habitat Walk participants with a list of safety do's and don'ts and have them review this list thoroughly. Chapter 3 covers several important safety concerns that should be incorporated into a stream monitoring program. Remember, volunteer safety is more important than the data. Some reminders include:

TASK 5 Gather equipment and tools for the Habitat Walk

There is nothing more frustrating than arriving at a field monitoring site and not having all your equipment and supplies. Providing volunteers with a checklist of necessary items will help keep them organized. In addition to the basic equipment listed in Chapter 2, you will need the following for the Stream Habitat Walk. For locating the site For recording observations For marking-off the stream stretch of study For working in and around the stream For observing macroinvertebrates (optional)

TASK 6 Become familiar with the Stream Habitat Walk field data sheet and the definitions of its elements

It is important to become familiar with the Stream Habitat Walk field data sheet and its instructions before you begin your Stream Habitat Walk. If you are unclear about any instructions when you are conducting your Walk, just leave that space blank and k eep going. You might wish to contact your volunteer program coordinator for further explanation after you have completed your Walk.

At the end of this section is a sample field data sheet. You might find it necessary to modify this sheet slightly to better meet the needs of your volunteers, your ecological region, and your program. When you fill out your field data sheet, base your re sponses on your best judgment of conditions in a stretch of stream that includes about 50 yards both upstream and downstream of the place where you are standing. If you identify features and problems beyond your chosen 100-yard length, feel free to note t hem on your map and form. You might want to conduct additional Walks in the area where those features are found.

Instructions on how to fill out the field data sheet are included right on the form. They are also covered in an expanded format, with illustrations, in this text. Although many of the required measures are relatively self-explanatory, it might be a good idea to make copies of these instructions for all volunteer teams to take into the field as an additional training tool.

Step 2--Delineate and sketch your site

TASK 1 Delineate the site

Using your tape measure or 25 yards of string or twine, measure off four 25-yard lengths alongside the stream for a total of 100 yards. Start from a point of reference such as a tree, large rock, or bend in the stream.

TASK 2 Sketch your site on the field data sheet

On the field data sheet, sketch the 100-yard section of stream. (Fig. 4.3). Drawing the map will familiarize you with the terrain and stream features and provide you and other volunteers with a visual record of your habitat walk. You should walk the 100-y ard length from at least one bank.

On your sketch, note features such as riffles, runs, pools, ditches, wetlands, dams, riprap, outfalls, tributaries, landscape features, jogging paths, vegetation, and roads. Use your topo map or a compass to determine which direction is north and mark it on your sketch. If you see important features outside your 100-yard length of stream, mark them on your sketch but note that they are outside the stream reach. Remember to use pencil or waterproof ink when drawing your map or filling out the field dat a sheets because regular ink will run if wet.

Stream Sketch

Figure 4.3
Example of stream sketch
Volunteers should note important stream features on their sketch including riffles and pools.
Select a 25-yard section of the site. You will be filling out your field data sheet for this section only. Mark the section on the sketch. If you want to conduct multiple walks, choose another 25-yard section or move to an entirely different location. Eve n though you will only be completing the data forms for the 25 yard reach, it is important to sketch the full 100-yard section so that you can document the stream features surrounding the evaluated reach.

TASK 3 Complete the top portion of your field data sheet

Include stream name, date, and county (or appropriate local designation) of your site, and describe its location as precisely as possible. It is best to stand at or near a permanent marker such as a bridge, abutment, or road. Remember, you or another volu nteer will be coming back to the same spot again and again, so be as specific as you can. Some programs might ask you for the latitude and longitude of your location; others might ask for a map reference number or other site identifier.

Latitude and longitude information is critical for mapping and for many data management programs. It is also required if the data is to be entered in USEPA's STOrage and RETrieval System (STORET) or used in a Geographical Information System (GIS).

An easy way to determine latitude and longitude is to use a global positioning system (GPS), a hand-held tool that looks like a calculator. GPS units receive signals form orbiting satellites and then use the information from the satellites to calculate th e lat/long coordinates of the user. In general, these tools are accurate up to 15 meters. GPS units are relatively inexpensive and can be purchased from scientific supply houses and many camping or outdoor stores. Many government agencies are using GPS an d might be able to loan a system to your program. Latitude and longitude can also be calculated manually using a USGS topographical map and a ruler (See Appendix C).

Step 3--Conduct the Stream Habitat Walk

Detailed instructions for performing the Stream Habitat Walk begin on page 48 of this section.

TASK 1 Complete the habitat characterization components of the walk for the 25-yard section of stream: the "In-Stream Characteristics," "Stream Bank and Channel Characteristics," and "Local Watershed Characteristics" sections of the field data sheet

These elements involve making observations about the stream itself as well as the riparian zone and immediate watershed.

TASK 2 Complete the "Visual Biological Survey" section of the field data sheet

This involves simple visual observations of the presence or absence of wildlife and obvious aquatic life in the stream, including fish, aquatic plants, and algae.

TASK 3 Complete the "Macroinverte-brate Survey" section of the field data sheet

This is optional and serves as an introduction to the types of life that inhabit some of the microhabitats of the stream the spaces under and on rocks and in and on twigs and leaves. To conduct this survey, you will need to select the method(s) that best suits your stream. Use the rock-rubbing method in streams with riffles, or use the stick-picking method if your stream does not have riffles. Clumps of submerged leaves may be present in either type of stream and are often an important microhabitat for ma croinvertebrates. You may choose to sort through these leaf packs in addition to rock-rubbing or stick-picking.

You will also need some specific equipment (a bucket, tweezers, picnic plate, etc.). Be sure to dress appropriately because you'll probably get wet.

Remember to return the organisms to the stream when you finish the macroinvertebrate survey. Then, check to make sure your field data sheet has been completed as fully as possible.

Step 4--Check data forms for completeness and return forms to program coordinator

After completing the habitat characterization and biological survey, make sure you have completed the field data sheet to the extent possible and that the recorded data are legible. If you are not able to determine how to answer a question on the field da ta sheet, just leave the space blank. If you leave a space blank, indicate that it is because you are not able to answer the question (e.g., write "not able to answer" or "does not apply" in the space).

Upon completion of the Stream Habitat Walk, present a copy of the field data sheet to your volunteer program coordinator. You may want to keep a copy of the field data sheet, and other appropriate data, for your own records and to evaluate any future disc repancies in the data. If you have identified an urgent problem, such as leaking drums of chemicals, foul odors, or fish kills, contact your program coordinator or the agency with whom you are working as soon as possible.

Instructions for completing the Stream Habitat Walk data sheet

Cross sections

Figure 4.4
Overview and cross sections of a pool, riffle, and run
Varying flows and depths create a variety of habitats for macroinvertebrates.

For ease of use, the following numbered instructions correspond to the numbers on the field data sheet.

In-stream Characteristics

  1. Pools, riffles, and runs. A mixture of flows and depth and provide a variety of habitats to support fish and invertebrate life. Pools are deep with slow water. Riffles are shallow with fast, turbulent water running over rocks. Runs are deep with fast water and little or no turbulence.

  2. Stream bottom (substrate) is the material on the stream bottom. Identify what substrate types are present. Substrate types include:

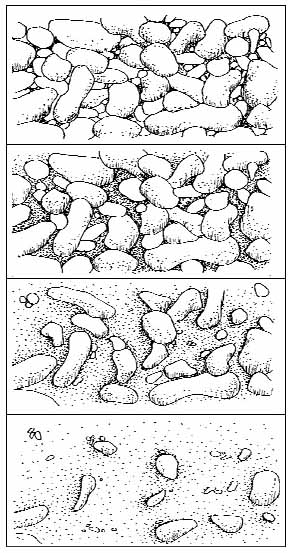

    Rocky-bottom stream
    Figure 4.5
    A representation of a rocky-bottom stream becoming embedded with sand and silt
    As silt settles on the streambed, spaces between the rocks are filled in and the stream becomes more embedded.

  3. Embeddedness is the extent to which rocks (gravel, cobbles, and boulders) are sunken into the silt, sand, or mud of the stream bottom (Fig. 4.5). Generally, the more rocks are embedded, the less rock surface or space between rocks is available as habitat for aquatic macroinvertebrates and for fish spawning. Excessive silty runoff from erosion can increase a stream's embedded-ness. To estimate embeddedness, observe the amount of silt or finer sediments overlying, in between, and surrounding the rocks.

  4. Presence of logs or woody debris (not twigs and leaves) in stream can slow or divert water to provide important fish habitat such as pools and hiding places. Mark the box that describes the general amount of woody debris in the stream.

  5. Naturally occurring organic material in stream. This material includes leaves and twigs. Mark the box that describes the general amount of organic matter in the stream.

  6. Water appearance can be a physical indicator of water pollution.

  7. Water odor can be a physical indicator of water pollution

  8. Water temperature can be particularly important for determining the suitability of the stream as aquatic habitat for some species of fish and macroinvertebrates that have distinct temperature requirements. Temperature also has a direct effe ct on the amount of dissolved oxygen available to the aquatic organisms. Measure temperature by submerging a thermometer for at least 2 minutes in a typical stream run. Repeat once and average the results.

Stream Bank and Channel Characteristics

  1. Depth of runs and pools should be determined by estimating the vertical distance from the surface to the stream bottom at a representative depth at each of the two habitats.

  2. The width of the stream channel can be determined by estimating the width of the streambed that is covered by water from bank to bank. If it varies widely, estimate an average width.

  3. Stream velocity can have a direct influence on the health, variety, and abundance of aquatic communities. If water flows too quickly, organisms might be unable to maintain their hold on rocks and vegetation and be washed downstream; if wate r flows too slowly, it might provide insufficient aeration for species needing high levels of dissolved oxygen. Stream velocity can be affected by dams, channelization, terrain, runoff, and other factors. To measure stream velocity, mark off a 20-foot sec tion of stream run and measure the time it takes a stick, leaf, or other floating biodegradable object to float the 20 feet. Repeat 3 times and pick the average time. Divide the distance (20 feet) by the average time (seconds) to determine the velocity in feet per second. (See Chapter 5, section 5.1 on flow for a more indepth discussion of using a float to estimate velocity.

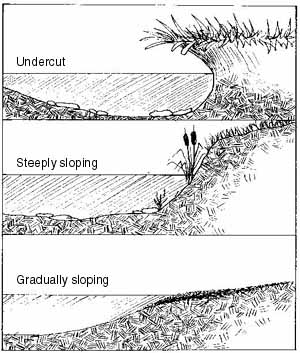

  4. The shape of the stream bank, the extent of artificial modifications, and the shape of the stream channel are determined by standing at the downstream end of the 25-yard section and looking upstream.

  5. Streamside cover information helps determine the quality and extent of the stream's riparian zone. This information is important at the stream bank itself and for a distance away from the stream bank. For example, trees, bushes, and tall gr ass can contribute shade and cover for fish and wildlife and can provide the stream with needed organic material such as leaves and twigs. Lawns indicate that the stream's riparian zone has been altered, that pesticides and grass clippings are a possible problem, and that little habitat and shading are available. Bare soil and pavement might indicate problems with erosion and runoff. Looking upstream, provide this information for the left and right banks of the stream.

  1. Stream shading is a measurement of the extent to which the stream itself is overhung and shaded by the cover identified in 13 above. This shade (or overhead canopy) provides several important functions in the stream habitat. The canopy cool s the water; offers habitat, protection, and refuge for aquatic organisms; and provides a direct source of beneficial organic matter and insects to the stream. Determine the extent to which vegetation shades the stream at your site.

  2. General conditions of the stream bank and stream channel, and other conditions that might be affecting the stream are determined by standing at the downstream end of the 25-yard site and looking upstream. Provide observations for the right and left banks of the stream.
