A novel method of marking that appears to overcome such drawbacks has been devised by Nicholas Wadsworth, an amateur plant ecologist of Farnborough in England. Wadsworth buries small bar magnets at various points in the fields. Later he locates them to within a few feet using a proton free-precession magnetometer that he designed and built at home. He then uses a pocket compass to zero in on the exact location of the magnets. Wadsworth writes:

"My magnetometer is based on the effect a magnetic field exerts on protons in the nuclei of atoms of water. According to theory, most elementary particles including the protons in water-spin on their axes like tops. They are also magnetized. In the presence of a magnetic field, such as the earth's, the spinning protons precess around the direction of the field in the same way that a spinning top standing on its point at an angle precesses around the direction of the earth's gravitational field. The rate of precession is proportional to the strength of the magnetic field.

"Normally the protons are out of step with one another, so that their effects cancel and the precession cannot be detected. If, however, all the protons could be made to point in the same direction at right angles to the earth's field and were then released together, they would all precess together. The effect of all would add, and the precession would be easily detectable for a few seconds until the protons got out of step again.

"Unfortunately a magnetic field of more than a billion oersteds would be needed to line up all the protons at room temperature. This is much larger than the largest magnetic field ever produced. However, much smaller fields, which can be produced easily by a dry battery and a coil of wire, can cause slightly more protons to point one way than the other. The difference is sufficient to produce a detectable signal in the coil when they are released. The precession frequency, and hence the frequency of the signal induced in the coil, is about 2,025 cycles per second. After amplification it can be heard in an earphone as a musical tone about three octaves above middle C.

"This is, of course, a 'classical' description of the process. The quantum-mechanical description involves the emission of quanta as the protons 'flip' from one quantized state to another in the presence of the magnetic field. The description is different but the end result is the same.

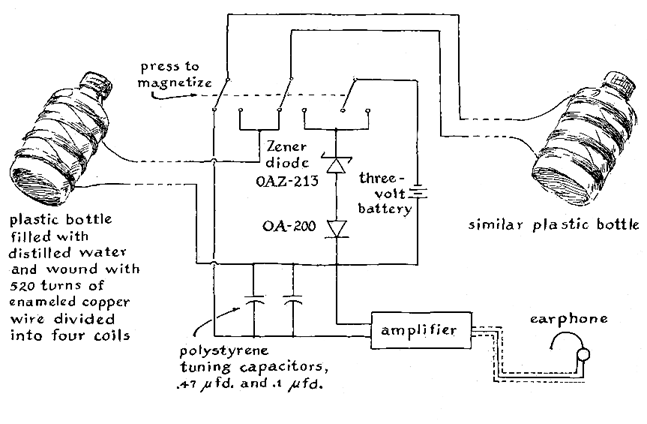

"The heart of the instrument is two plastic bottles wrapped with insulated copper wire and filled with distilled water. A switch of the push-button type enables me to connect the coils to either a three-volt dry battery or the input terminals of an amplifier. The bottles are mounted on the ends of a nine-foot pole at right angles to the pole, which supports in the middle the switch, battery and amplifier. ITsually the coils are connected to the input of the amplifier. Pressing the switch transfers the connections to the battery. When the switch is released, the battery circuit opens first and other contacts transfer the coil leads to the amplifier [see Figure 1].

"At a potential of three volts the current in the coils develops a magnetizing force in the water of about 30 oersteds. When the field is turned off, the protons precess around the earth's field for about three seconds and induce an alternating voltage in the windings of the bottles. The windings are connected in reverse polarity. For this reason the induced voltages cancel if the earth's field is uniform in strength and direction at both bottles. Nothing is heard in the earphone except the residual noise of the amplifier.

"On the other hand, if the magnetic field differs at the two bottles, the induced frequencies also differ and a net difference in voltage appears at the terminals of the amplifier. Such differences are observed when one bottle is closer than the other to a buried magnet, a piece of iron or inhomogeneities of the soil. Beats or wavers then appear in the signal. They reflect the difference frequency of the current in the two sets of coils. The 2,025-cycle note from the earphone gets alternately louder and softer.

"The magnetometer can detect a minimum difference in field strength of about 3 x 10^-5 oersted, but where I live the earth's field is disturbed more than this by differences in soil composition. The smallest difference that I can definitely identify as arising from a buried magnet is about 2 x 10^-4 oersted, which gives about one beat per second. I bury permanent bar magnets that are three inches long and 3/8 inch by 5/8 inch in cross section.

"When searching for magnets, I hold the pole horizontally at right angles to my path. If I am moving east, the pole points north and south and the bottles point east and west. I press the switch for about three seconds and release it. If I hear either no beats or one that persists for more than a second, I conclude that no magnet is in the vicinity. Then I press the switch while taking three slow paces forward, stop and listen again. In this way I search a strip about 12 feet wide. If I find no magnet, I similarly scan parallel strips. Thus I can quickly search a large area, listening at points nine feet apart in a series of 12-foot strips.

"When I hear two or more beats per second, I know that I am near a magnet or some other object that exerts a strong influence on the earth's field. I then spoil the signal from one coil by placing a small piece of iron near it. The field at that bottle becomes so inhomogeneous that the signal fades abruptly. Then I hear only the steady signal from the second bottle. This signal also disappears when the second bottle is moved close to the buried magnet. By this procedure I locate the magnet to within a foot or two. It can then be found easily with a pocket compass.

"The magnetometer is inexpensive and easy to build. At a variety store I bought thin-walled polyethylene bottles 1 3/8 inches in diameter and 2 1/3 inches long with plastic tops. I filled the bottles with distilled water. Each bottle was wound with 520 turns of No. 24 Standard Wire Gauge enameled copper wire. (The diameter of the wire is .022 inch, equivalent to No. 23 American Wire Gauge.) Each winding is divided into four sections of 130 turns each. The sections are spaced uniformly along the bottle to minimize capacitance in the coils.

"The terminals connect directly to the push-button switch. The switch consists of the contact assemblies of three microswitches. The assemblies are mounted so that one plunger actuates all three assemblies. When the plunger is released, the battery circuit is broken and then the coils are reconnected to the amplifier.

"The signal from the coils amounts to only about 10^-16 watt, equivalent to the radiant energy that enters the eye from a candle 16 miles away. The amplifier must therefore be of the type that develops high gain and little noise at the desired frequency of 2,025 cycles. It should also be compact and light, and it should impose a minimum load on the battery.

"My amplifier was designed around inexpensive germanium transistors. The first transistor of the string develops only about as much noise as is generated by the random motions of electrons in the copper coils. Noise is suppressed further by the insertion of a tuned transformer between the third and the fourth transistor of the string. The magnetic core of the transformer is of the 'pot' type: it has roughly the shape of a hollow doughnut equipped with a movable plug in the central hole. The torus contains two coils of wire, which are the primary and the secondary winding of the transformer.

"The unit passes only the narrow band of frequencies determined by the position of the movable plug and the tuning capacitor. The position of the plug is set by a screw adjustment to pass the desired 2,025-cycle tone generated by the protons. I use the Mullard Type LA2416 pot core, which I bought (together with the transistors) from Mullard Ltd., Mullard House, Torrington Place, London WC 1. Mullard is a branch of Philips' Gloeilampenfabrieken of Eindhoven in the Netherlands.

"The design of the tuned transformer is fairly critical. In particular the Q of the completed transformer–the ratio of the average energy stored in the transformer to the energy that is dissipated per 1/3.14 cycle–must be at least 160. Any pot core that, when wound, will yield this Q can be substituted for the Mullard Type LA2416.

"The primary winding of the transformer consists of 120 turns of No. 42 S.W.G. enameled copper wire; the diameter is .004 inch, equivalent to No. 38 A.W.G. The coil is wound first on an insulating form and covered by a thin layer of paper insulation. The secondary coil of 1,170 turns of No. 40 S.W.G. enameled copper wire, tapped 30 turns from the inner end, is then wound over the primary. (The diameter of the wire is .0048 inch, approximately equivalent to No. 36 A.W.G.) The secondary winding, when it is in place within the pot core, has an inductance of one henry and is tuned to the resonant frequency of 2,025 cycles per second by a capacitor of .006 microfarad. I used a capacitor that was made with polystyrene insulation to minimize the loss of energy and thereby minimize the width of the band of frequencies transmitted by the resonant circuit.

"A signal of 10^-18 watt can just be heard above the noise of the coils and amplifier. The gain in voltage is about two million, so that certain parts must be shielded to prevent the amplified signal from feeding back into the low-energy parts of the circuit. I installed the amplifier and its nine-volt dry battery in a tobacco tin. The tuned circuit was isolated from the remaining parts by metal partitions that divided the housing into three compartments and thus shielded the input and output portions of the circuit from each other. The internal layout of the parts is not critical.

"The assembly is completed by tuning the pot-core transformer. This adjustment is determined by the local strength of the earth's magnetic field. The operation must be performed away from buildings and pieces of iron. The magnetic field inside the average dwelling is so inhomogeneous that the signal quickly dies away.

"Any germanium transistors that have a current gain of about 40 at .5 milliampere can be substituted for those specified by my circuit [see illustration below]. The transistors designated in the illustration are of British manufacture and have no exact U.S. equivalent. The first transistor in the string, Q1, must have a low noise figure-about three decibels when connected to a 1,500-ohm resistor, which is a source of noise.

"A diode of the Zener type connected in series with a conventional diode is bridged across the switch contacts of the three-volt battery. These diodes minimize sparking at the switch contacts and speed up the collapse of the magnetic field when the circuit is opened. The rating of the Zener diode should lie between 10 and 20 volts. The unit must be capable of transmitting 300 milliamperes for a maximum of 500 microseconds. Any diode of the silicon-junction type can be connected in series with the Zener diode.

"The current drawn from the nine-volt battery by the amplifier amounts to only 2.5 milliamperes, so that the battery should have a long life. In contrast, the coils draw about one watt when they are magnetized by the three-volt battery. I use a heavy-duty dry battery for energizing the coils. The life of the three-volt battery is about 24 hours if it is used intermittently.

An essential apparatus for making experiments of many kinds is a reasonably accurate clock that can operate a switch automatically at regular and predetermined intervals, make a periodic sound, register the passage of time in discrete units and so on. A clock of this kind is described by Eric Newman, a high school student in New York. He built the unit primarily as an introductory exercise in the use of two solid-state devices of recent origin: the unijunction transistor and the silicon-controlled rectifier.

Like the vacuum tube and the transistor, these devices are equipped with three terminals. The devices will conduct electric current in only one direction between two of the terminals when an appropriately smaller current is applied to the third terminal. In effect, the devices function as switches that can be opened or closed thousands of times per second by a signal that can be transmitted from a distant location. Both devices are made essentially of semiconducting materials.

The unijunction transistor consists of two minute rods of silicon joined in a structure that resembles a T crossed somewhat off center. Normally the electrical resistance of the crossarm of the T is quite high-5,000 ohms or more. Positive potential is usually applied to the end of the shorter portion of the crossarm and negative potential to the longer portion [see Figure 4]. The shorter portion goes by the name of "base two" and is designated B₂ in the illustration; the longer portion is called "base one" and is shown as B₁ in the illustration. The leg of the T is called the emitter. The emitter will conduct current into the base region but not in the reverse direction. Normally the path between the emitter E and B₁ behaves like an open circuit. When one applies to the emitter a positive potential that is equal to about 60 percent of the potential between B₁ and B₂, however, the resistance between the emitter and B₁ drops abruptly to a low value.

Devices that exhibit this characteristic can be made to generate electrical oscillations: to convert direct current into alternating current. The unijunction transistor makes an ideal oscillator for generating pulses of short duration, waves in the shape of sawteeth and other forms that-before the advent of this small and inexpensive device-could be generated only by complex apparatus. Unijunction oscillators nearly always work the first time you try them. For this reason experiments that are based on them can serve as a pleasant introduction to the technology of solid-state devices in general.

The maximum average current that can be switched by the unijunction transistor amounts to only a few thousandths of an ampere. In contrast, the silicon-controlled rectifier (SCR) is a high-current device. The largest SCR can carry hundreds of amperes and control loads of many kilowatts.

The terminals of the device include an anode, a cathode and a control electrode called the gate. The SCR will conduct current from the anode to the cathode when a pulse of positive current is applied to the gate. Once the device has been triggered it continues to conduct until the current is interrupted by some external device. The unijunction transistor makes an ideal triggering companion for the SCR.

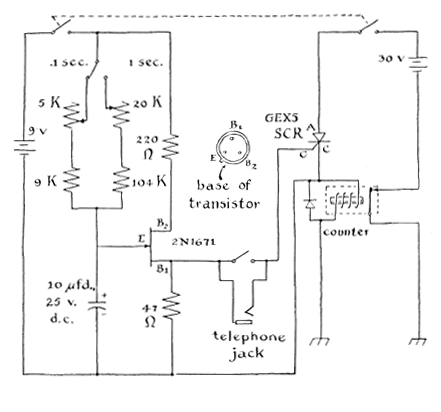

"My solid-state timer," writes Newman, "includes two basic circuits: an oscillator that consists of a unijunction transistor and an associated timing circuit that generates a series of extremely short periodic pulses of current, and a silicon-controlled rectifier that is actuated by the timed pulses. An electro-mechanical counter, powered by the SCR, registers the accumulated intervals of time.

"The timing circuit consists of two adjustable resistors that can be connected alternately by a switch to the positive terminal of a nine-volt dry battery that applies potential to a capacitor. The negative terminal of the battery is connected to the second terminal of the capacitor. The rate at which the capacitor accumulates charge varies inversely with the size of the resistors.

"The junction between the capacitor and the resistors is connected to the emitter of the unijunction transistor. B₂ of the transistor is connected to the positive terminal of the battery through a resistor that limits the current to a safe value. B₁ is similarly connected to the negative terminal through a resistor that serves as a load. A potential difference appears across the load resistor when the transistor conducts current.

"When power is applied to the apparatus, charge accumulates in the capacitor. Voltage simultaneously rises across the terminals of the capacitor and across the emitter and B₁ of the transistor. When the potential has increased to about 60 percent of the potential across the battery, the emitter abruptly conducts and the resistance vanishes between the emitter and B₁. The capacitor discharges almost instantly through the transistor. During the discharge a voltage pulse appears across the terminals of the load resistor. The cycle continues as long as power is applied.

"One resistor of my instrument is adjusted to generate pulses at the rate of one pulse per second and the other at the rate of 10 pulses per second. The rate of pulsing, in seconds, is roughly equal to the product of the capacitance in microfarads multiplied by the resistance in megohms. I refined the calibration by accumulating the total count, as indicated by the electromechanical counter, for a series of 15-minute intervals, as indicated by an accurate clock, and then adjusted the resistors as required.

"Pulses from the timing circuit are applied to the gate of the SCR. The anode-cathode circuit of the SCR includes the electromechanical counter, a 30-volt battery and a set of relay contacts that are operated by the armature of the counter. The SCR, when it is triggered into the conducting state, remains conductive until the power is interrupted. The relay contacts perform this function.

"The SCR, when it is triggered, also applies power to the solenoid of the counter. The solenoid then magnetically attracts a movable armature, which operates a ratchet that advances the counting wheels one unit. The armature also opens the contacts at the inner limit of its excursion (after it has actuated the ratchet).

"Contacts must be added to the counter. I salvaged a contact-spring assembly from an old relay. The assembly consists of a pair of flat, narrow springs joined at one end with an insulating spacer. The contacts, which are welded to the opposite end of the springs, are usually closed.

"The insulated end of the assembly was mounted on the frame of the counter with epoxy cement. A short rod was cemented to the armature to depress the innermost spring-and thus open the contacts-at the inner extreme of the armature's excursion. When the contacts open, the SCR returns to the nonconducting state. In this state it is prepared to accept the succeeding count."

Bibliography

INTRODUCTION TO TRANSISTOR CIRCUITS. E. H. Yarborough. Interscience Publishers, Inc., 1960.
